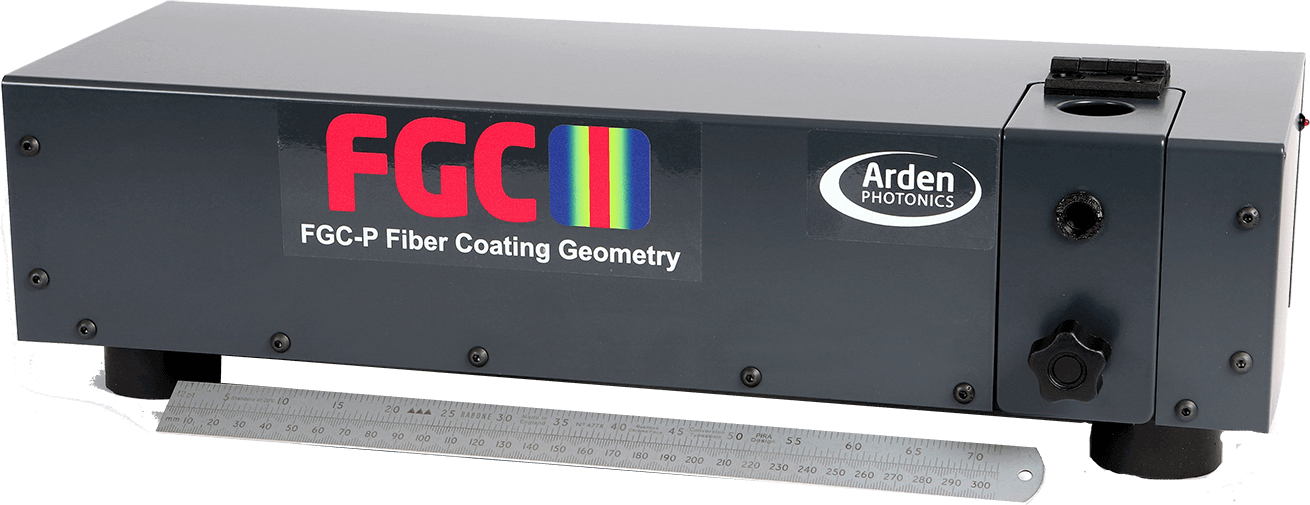

1.新型液體池設計可測量低至 60/100 μm 的細光纖
2.測量雙層塗層——適用於許多標準和特種光纖
3.光纖可旋轉多達（dá） 36 個不同的徑向位（wèi）置，實現精確測量塗層（céng）同心度和非圓度
4.符合標準 – 使用 IEC-60793-1-21 中描述的（de）側視參考測試方法（fǎ）
|
Measurement Capability
|
|
|
Fiber Type
|
SM, MM, PM
|
|
Coating Material
|
Dual acrylate
|
|
Coating Diameter
|
100 µm to 260 µm
|
|
Layer Thickness
|
> 10 µm
|
|
Measurement Time*
|
< 10 s per angular position
|
|
Angular Positions
|
Customisable, 8 to 36
|
|
Repeatability**
|
|
|
Outer Coating Diameter
|
< 0.5 µm
|
|
Outer Coating Non-Circularity
|
< 0.5%
|
|
Inner Coating Diameter
|
< 0.8 µm
|
|
Inner Coating Non-Circularity
|
< 0.8%
|
|
Outer Coating-to-Cladding Concentricity
|
< 0.5 µm
|
|
Inner Coating-to-Cladding Concentricity
|
< 0.8 µm
|
|
Optical
|
|
|
Illumination – Side View
|
Darkfield, 525 nm
|
|
Max Field of View
|
580 µm
|
|
Image Sensor
|
1.1-inch CMOS, 4112 x 3008 pixels resolution
|
|
Exposure Range
|
0.1 ms to 100 ms exposure time
|
|
Physical
|
|
|
Weight
|
6 kg (with carry case 12 kg )
|
|
Size
|
0.5 x 0.2 x 0.2 m
|
|
Operating Temp***
|
10 – 30° C
|
|
Power Supply
|
15 V (external power supply supplied)
|
|
Power Consumption
|
60 W
|
|
Computer Requirements
|
All FGC systems are supplied with a computer running up-to-date Windows operating system
|
|
Data Interface
|
1 X USB 3.0 (USB B to USB A: 1 m cable supplied)
|
*Analysing 100 scan lines and averaging 5 images
**Repeatability is measured using a 125/245 dual acrylate coated MM fiber sample over 12 angular positions without removing from the FGC-P
***Performance specification validated at 22° C
