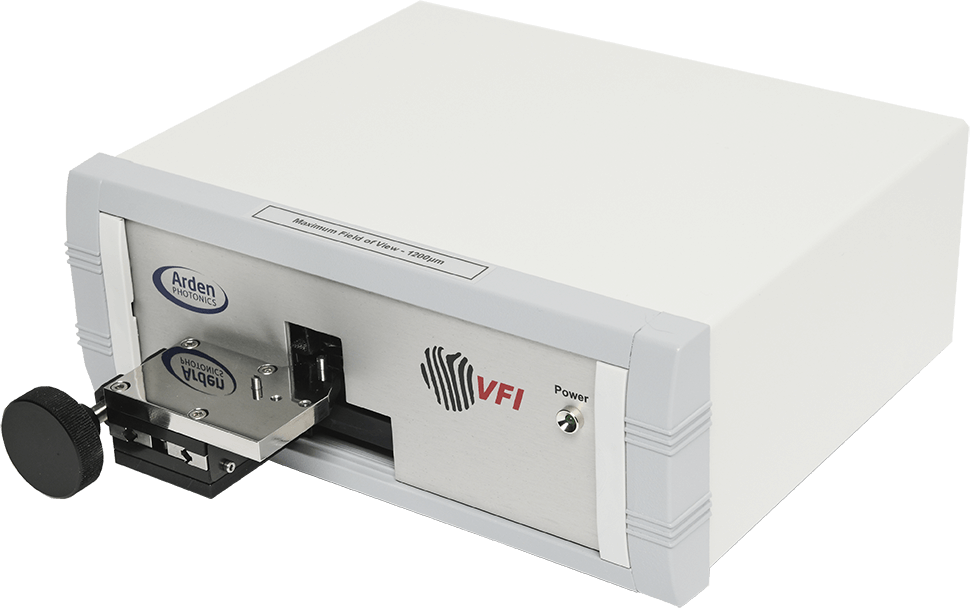

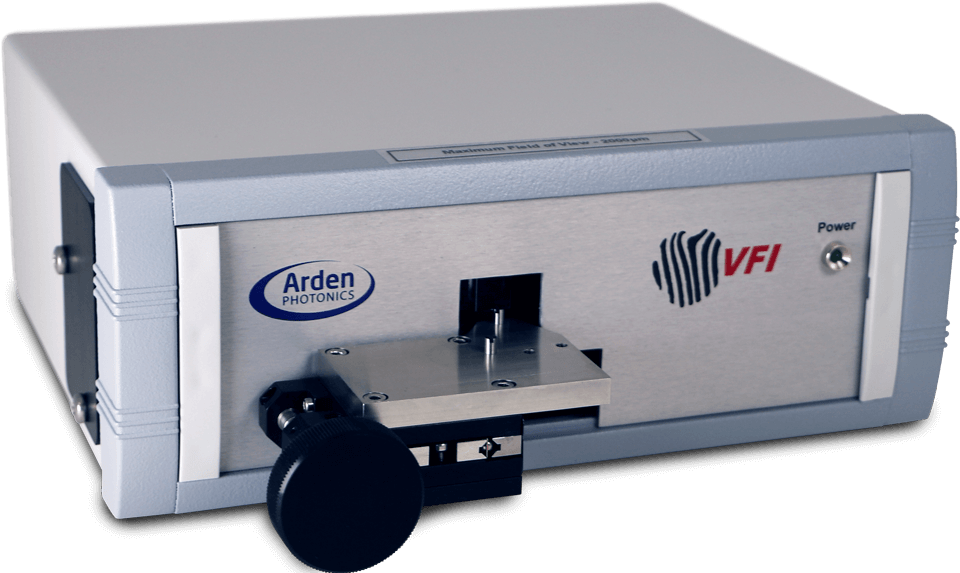

VFI 是一種幹涉檢測係統，專為檢查切割或拋光光纖的表麵質量和平整度而設計。 用戶可以在 2D 和 3D 的各種不同視圖中查看其光纖，從而讓用戶全麵了解其切割或拋光過程。 VFI 幹涉儀已在研究、生產和 QA 中一遍又一遍地證明了自己，我們從用戶那裏得到的反饋表明他們重視這些功能：
3 個不同的視野
平切和斜切
檢查和邊緣模式
自動或手動端角測量
2D 或 3D 測量模式
3D端麵高度圖
二維測量——實時； 7 秒內完成 3D 測量
高度數據可以保存為csv文件
數據輸出為 Excel 或 HTML 報告
精密切割刀製造
切割刀維護
激光製造
醫療器械製造
光纖研發
特種光纖製造
切割刀的研發與測試
LDF切割刀製造/維護
多芯光纖製造
Optical | VFI-200 |
Field of View | 200 µm maximum withx1.5, x2, x3 and x6 digital zoom |
Image sensor | 1/1.8 inch CMOS array, 12-bit, 6.4 MP |
Camera sensor size | 3088 x 2076 px, 2.4 µm square pixels |
LED wavelength | 525 nm |
Measurement Capabilities | |
Maximum measurable cleave angle (without using angled fiber holder)* | 2D mode: 8° |
Measurement time | 2D mode: real-time |
Image Quality | Fully resolves USAF Target to Level 7 minimum |
Height Resolution | 0.01 µm |
Physical | |
Dimensions | 240(W) x 240(D) x 90(H) mm |
Weight | 3 kg |
Connection to computer | USB 3.0 (USB Type B to USB A; 1 m cable supplied) |
Power supply | Via USB |
Operating systems support | Windows 7/8/10 64bit |
Computer requirements | 4 GB RAM; USB 3.0 port; 64bit |
Operating temperature | 10 – 30°C |
* Maximum angle is stated for a fiber with 125 µm cladding diameter. Larger cleave angle can be measured using an angled fiber holder.
Optical | VFI-1200 |
Field of View | 1200 µm maximum with x1.5, x2, x3 and x6 digital zoom |
Image sensor | 1/1.8 inch CMOS array, 12-bit, 6.4 MP |
Camera sensor size | 3088 x 2076 px, 2.4 µm square pixels |
LED wavelength | 525 nm |
Measurement Capabilities | |
Maximum measurable cleave angle (without using angled fiber holder)* | 2D mode: 8° |
Measurement time | 2D mode: real-time |
Image Quality | Fully resolves USAF Target to Level 7 minimum |
Height Resolution | 0.01 µm |
Physical | |
Dimensions | 240(W) x 240(D) x 90(H) mm |
Weight | 3 kg |
Connection to computer | USB 3.0 (USB Type B to USB A; 1 m cable supplied) |
Power supply | Via USB |
Operating systems support | Windows 7/8/10 64bit |
Computer requirements | 4 GB RAM; USB 3.0 port; 64bit |
Operating temperature | 10 – 30°C |
* Maximum angle is stated for a fiber with 125 µm cladding diameter. Larger cleave angle can be measured using an angled fiber holder.
Optical | VFI-2000 |
Field of View | 2000 µm maximum with x1.5, x2, x3 and x6 digital zoom |
Image sensor | 1/1.8 inch CMOS array, 12-bit, 6.4 MP |
Camera sensor size | 3088 x 2076 px, 2.4 µm square pixels |
LED wavelength | 525 nm |
Measurement Capabilities | |
Maximum measurable cleave angle (without using angled fiber holder)* | 2D mode: 8° |
Measurement time | 2D mode: real-time |
Image Quality | Fully resolves USAF Target to Level 7 minimum |
Height Resolution | 0.01 µm |
Physical | |
Dimensions | 240(W) x 240(D) x 90(H) mm |
Weight | 3 kg |
Connection to computer | USB 3.0 (USB Type B to USB A; 1 m cable supplied) |
Power supply | Via USB |
Operating systems support | Windows 7/8/10 64bit |
Computer requirements | 4 GB RAM; USB 3.0 port; 64bit |
Operating temperature | 10 – 30°C |
* Maximum angle is stated for a fiber with 125 µm cladding diameter. Larger cleave angle can be measured using an angled fiber holder.
